In The Beginning

carbon Fibre repairs

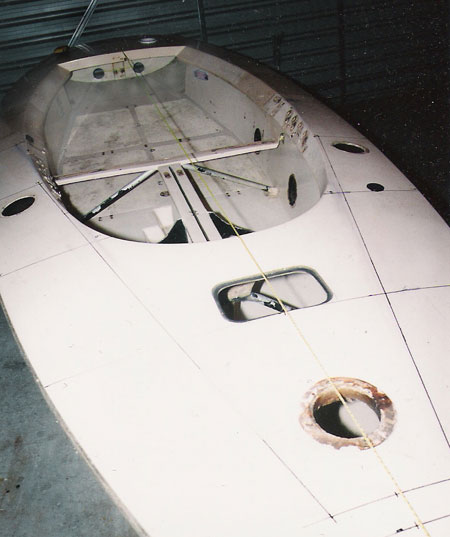

Finn NZL 193 was retrieved from under a hedge in KawaKawa. Had been stored there for around three years after the sad passing away of Noel Jordan. Boat has had a checkered career but had always been considered a fast boat.  One of the few Mk2 Marten boats that had foam stringers glassed in the bow and alloy support tubes bolted in to prevent centreboard case twist.
Finn Sailing
Finn Yacht Rebuild
carbon Fibre repairs
carbon Fibre repairs
First constructed a jig on the beach trolley to maintain the hulls rocker and cross section profiles.

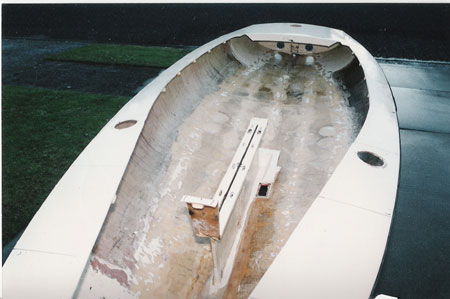

About eight hours later, having let loose jig and sabre saws plus an angle grinder, ended up with the hull ready to start the rebuild.
carbon Fibre repairs
carbon Fibre repairs
carbon Fibre repairs
carbon Fibre repairs
Note the mould growth in the underfloor and side tank area's. All polyester boats (especially from this vintage) are prone to water ingress. Airlfow through these areas is critical to remove water and stop older boats getting heavier by the season.

All polyester surfaces were sealed with epoxy resin (thinned 25% to get good penetration) after solvent wiping (to remove surface wax) and sanding.
carbon Fibre repairs
carbon Fibre repairs
carbon Fibre repairs
